Technical Drawing of the Sliding Door for the Dining Room at Lyndhurst for George Merritt, Tarrytown, New York

Alexander Jackson Davis American

Not on view

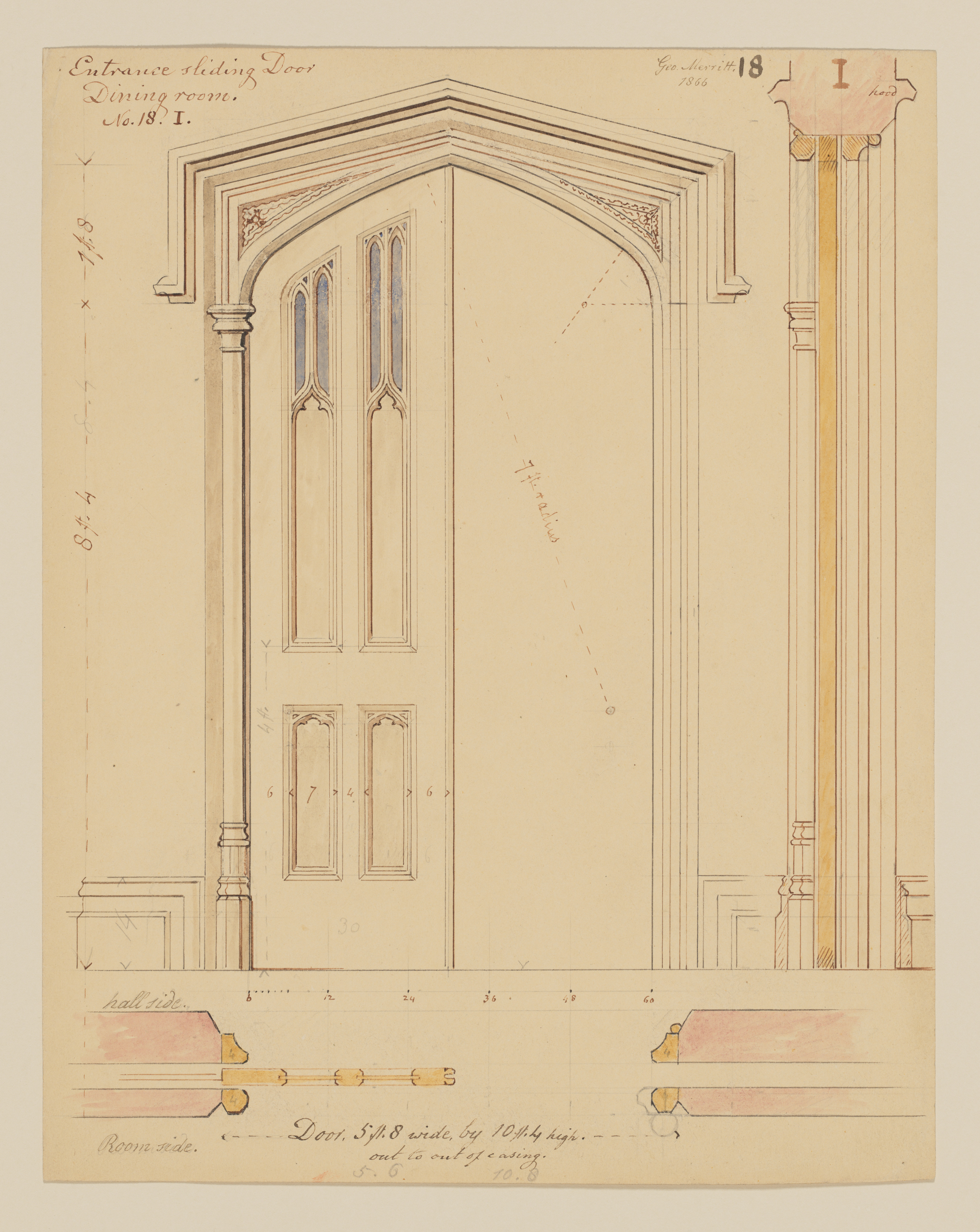

This drawing contains an elevation and various sections illustrating the mechanism for the sliding doors that were to be installed in the dining room at Lyndhurst. The design of the doors is neo-gothic in style, which is most apparent in the slim ogival tracery of the carved panels. Only one of the doors has been depicted. A scale and various measurements are given, in addition to a horizontal section below the elevation that clarifies the mechanism of the pocket doors.

Technical Drawing of the Sliding Door for the Dining Room at Lyndhurst for George Merritt, Tarrytown, New York, Alexander Jackson Davis (American, New York 1803–1892 West Orange, New Jersey), Watercolor, pen and ink, and graphite
