Architectural Drawing of a Garden

Period: New Kingdom

Dynasty: Dynasty 18

Date: ca. 1550–1295 B.C.

Geography: From Egypt, Upper Egypt, Thebes

Medium: Plastered and painted wood

Dimensions: H. 23.5 cm (9 1/4 in); w. 35.2 cm (13 7/8 in)

Credit Line: Gift of Norman de Garis Davies, 1914

Accession Number: 14.108

Description

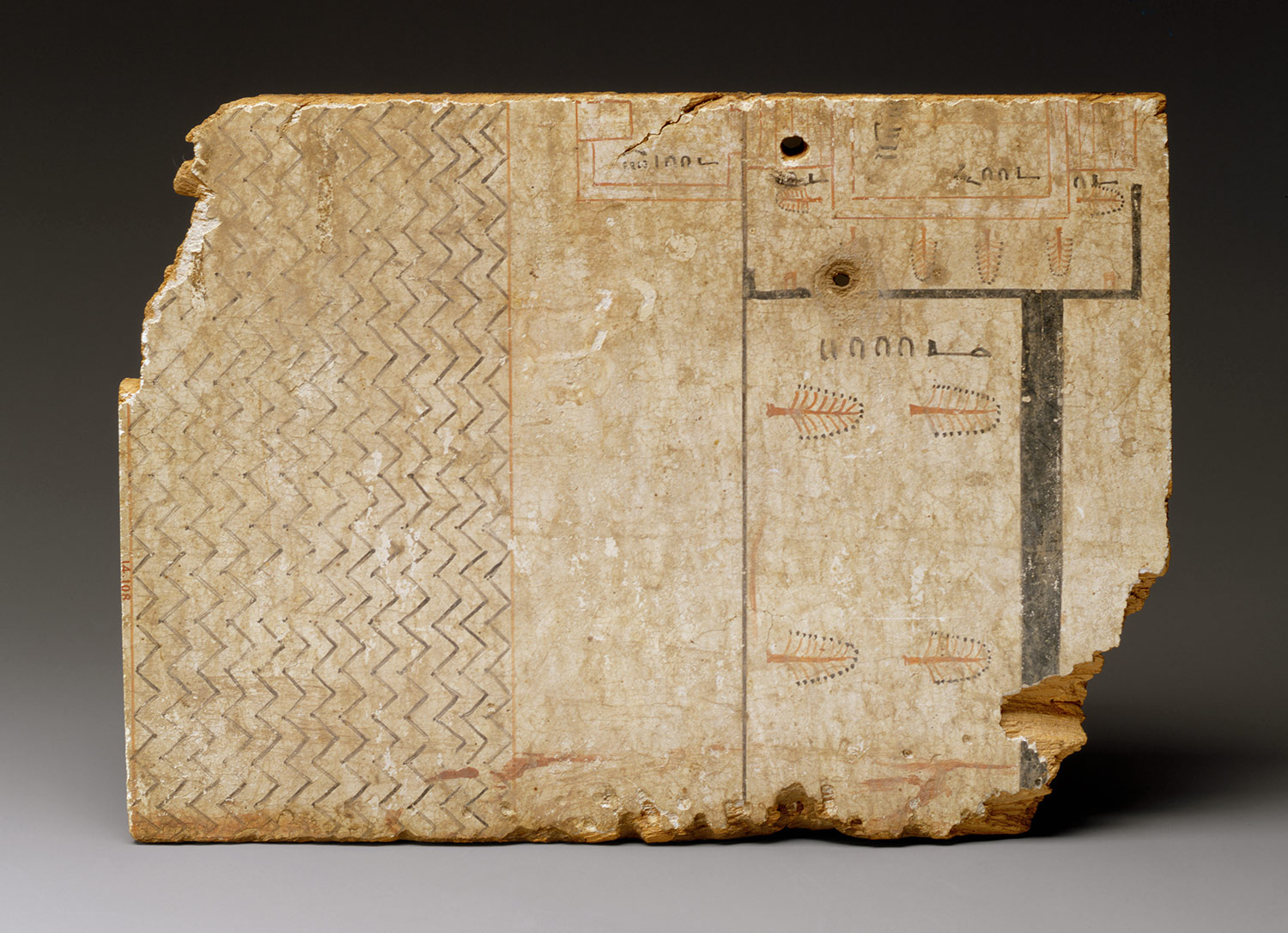

This fragmentary architectural drawing shows part of a small shrine (at upper right, in red) facing a body of water (at far left) and surrounded by trees within an enclosure wall of mud brick (in back). An orchard, also enclosed, runs parallel to the water. The measurements of the walls are written from right to left, and each begins with a hieroglyph in the shape of a forearm, which means "cubit," the Egyptian unit of length. This symbol is followed, in each case, by a number: an elongated semicircle stands for ten, and a stroke stands for one. Thus, the width of the orchard is thirty-two cubits.
